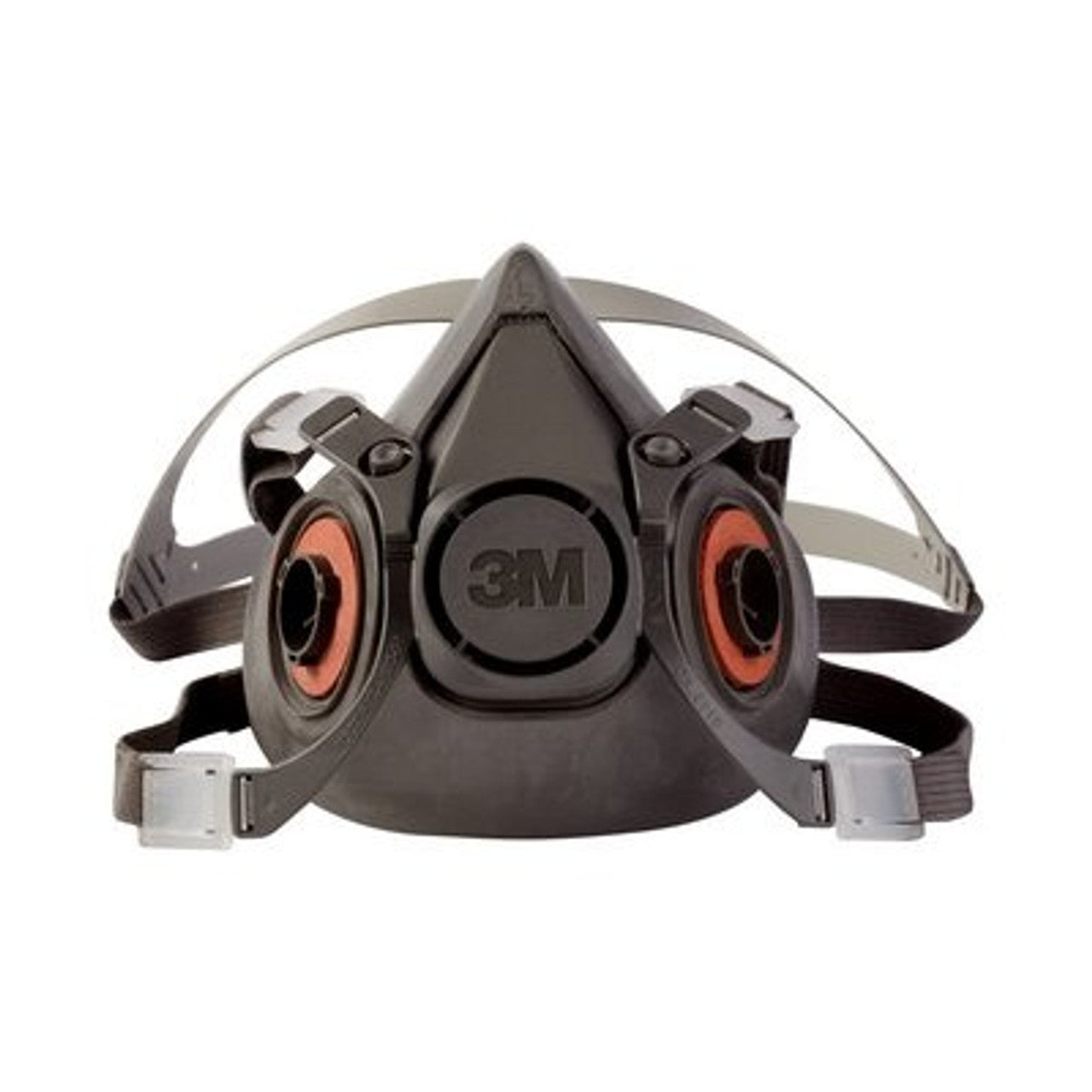

3M 6300 Half Mask Respirator Review

3M 6300 Half Mask Respirator Review: Large-Size Fit, NIOSH Compliance, and Seal Integrity for Workers Who Outgrow the Medium

Seal failure in a half-mask respirator often does not look like failure — the worker wears the mask, the straps are adjusted, and from the outside nothing appears wrong. But if the facepiece is too small for the worker's facial geometry, there are gaps at the chin, cheekbones, or nose bridge that reduce actual protection far below the rated APF of 10. The 3M 6300 exists precisely to solve this problem for workers with larger facial profiles — and understanding where the large fits and where it does not is essential to running an effective respiratory protection program.

This review focuses specifically on large-size fit characteristics, the populations most likely to need the 6300, how sizing errors manifest during fit testing, and the full technical context of the 6000 Series platform that makes the 6300 interchangeable with the 6100 and 6200 in terms of cartridge compatibility and protection rating.

Who Actually Needs a Large Respirator?

The large half-mask is the least commonly stocked size, which creates a systematic problem: workers who need it end up wearing a medium that does not fit, because that is what is available. This is not a minor inconvenience — it is a compliance failure and a health risk. OSHA 29 CFR 1910.134(d)(1)(ii) explicitly requires that employers provide respirators in sufficient models and sizes to ensure proper fit for each user.

Workers most likely to require the large size include:

• Men with wide facial structure, prominent cheekbones, or an extended chin-to-nose distance
• Workers with longer facial profiles where the medium chin cup rides too high
• Individuals who consistently fail fit tests at the chin during quantitative assessment
• Workers who find that medium respirators cause pressure points at the cheekbones even at minimum strap tension

It is important to note that a large face in general terms does not automatically mean a large respirator. Facial geometry is multidimensional — a worker with a broad jaw but narrow midface may fit better in a medium. The only definitive answer comes from fit testing, not from estimating based on body size.

Sizing Errors and Their Consequences

The most common large-size error in the field is workers wearing a medium and compensating by over-tightening the head straps. This is counterproductive and potentially harmful. Over-tightening distorts the thermoplastic elastomer face seal, creating pressure-point ridges rather than a uniform seal. It also causes significant discomfort, increasing the likelihood that the worker removes the respirator during the shift. Studies on respirator compliance consistently show that discomfort is the primary driver of non-use — and a respirator that fits poorly is one workers avoid.

Fit test results that suggest a worker needs the 6300:

• Quantitative fit test (PortaCount) showing leakage during normal movement with the 6200, especially on lateral head turns
• Qualitative fit test failure on bending exercises or talking — indicating chin cup displacement
• Visible gap at the lower face seal when the chin is extended or the head is tilted back
• Worker consistently reports mask shifting or sensing air movement at the cheeks

When a worker fails the 6200, test both the 6300 and — if the program includes it — the 3M 6503QL (large, silicone, Quick Latch) and the 3M 7503 (large, premium silicone, 7500 Series). Different facepiece geometries and materials can yield different results even at the same nominal size.

Cartridge Compatibility and Protection Scope

The 6300 uses the same bayonet cartridge mount as all 3M 6000/7000 series respirators. This is a crucial operational advantage: your cartridge inventory does not need to be size-specific. A safety crib stocking 60921 cartridges serves workers using the 6100, 6200, 6300, 6502QL, 7501, 7502, and 7503 equally. For a workforce requiring multiple sizes, this simplifies logistics significantly.

Recommended cartridges for the 3M 6300:

• 3M 60921 (OV/P100): General-purpose combination for painting, solvent work, welding
• 3M 60922 (OV/P100/Acid Gas): Mixed chemical environments including acid mists
• 3M 2091 P100: Particulate-only protection for dust, grinding, metal fume — see the 3M 2091 review
• 3M 6001 (OV): Organic vapor without particulate — for pure solvent vapor environments

Browse the full cartridge and filter collection at WC Safety for current selection and pricing.

How Large-Size Geometry Affects Seal Quality

The 6300's face seal perimeter is larger than the 6200's in both the chin cup depth and the lateral cheek span. For workers whose facial width or chin projection falls outside the medium range, this expanded geometry provides more complete seal contact along the entire perimeter. The key sealing zones for the 6300 are:

• Chin cup: The larger chin cup accommodates longer chin-to-nose distances without the cup riding up and breaking the lower seal
• Lateral cheek areas: The wider span reduces the tendency for the seal to bridge across wide cheekbones without contact
• Nasal bridge: The larger nosepiece arc accommodates higher-bridged nose profiles more comfortably

A properly fitted 6300 should show full contact along the entire seal perimeter with normal (not excessive) strap tension. If achieving this requires extreme strap tightening, the size may still not be right and a different facepiece model should be tested.

Series Comparison: 6300 vs 6503QL vs 7503

OSHA Compliance Context

Under OSHA 29 CFR 1910.134, the employer's respiratory protection program must include: hazard assessment, respirator selection, medical evaluation, fit testing, training, and program evaluation. For the 6300 specifically, the program must document that the large-size respirator was selected based on fit testing results, and the annual fit test must be repeated in the large size (or whichever size the worker was assigned).

If a worker's facial dimensions change significantly — due to weight gain or loss, dental work, or facial scarring — a new fit test is required even if the annual interval has not elapsed. This applies equally to all sizes. See our NIOSH standards guide for the full compliance framework, and the half-face respirator selection guide for cross-brand fit options.

For workers needing APF above 10, see the full-face respirator collection (APF 50) and the 3M full-face respirator guide.

Frequently Asked Questions — 3M 6300 Large Half Mask Respirator

Also see our half-face respirator guide for cross-brand comparisons. For the full 3M product line in the half-mask category, review the individual articles on the 3M 6501QL, 3M 6502QL, and 3M 7503. Pair respirator protection with safety glasses, hearing protection, and protective gloves for full PPE compliance.
